Structural Waste in Digital Operations

@misc{azarang2026structural,
  title  = {Structural Waste in Digital Operations: A Lean-theoretic framework extending TPS to information-system architecture},
  author = {Azarang Esfandiari, Mohammad Rashid and Azarang Esfandiari, Mohammad Reza},
  year   = {2026},
  note   = {Working paper},
  url    = {https://rashidazarang.com/research/structural-waste-in-digital-operations}
}

1. Introduction

The Toyota Production System (TPS) fundamentally transformed manufacturing by making waste visible and systematically eliminable (Ohno, 1988; Womack et al., 1990). Organizations implementing Lean principles report 25-45% productivity improvements through waste reduction, flow optimization, and continuous improvement (Shah & Ward, 2003; Netland, 2016). Yet as organizational operations increasingly depend on information systems, a paradox emerges: companies with sophisticated digital tools often experience greater operational chaos than those with simpler systems (Westerman et al., 2014; Kane et al., 2019).

Consider a typical mid-size organization: analysts spend 15-25 hours weekly reconciling data across systems, operations depend on specific individuals who "know where everything lives," and each new tool adds complexity rather than capability. These inefficiencies persist despite significant investments in digital transformation and technically excellent systems, suggesting a fundamental misalignment that current frameworks fail to address.

Current approaches to Lean in digital contexts remain insufficient for three reasons. First, Lean IT focuses on IT service delivery (incident resolution, change management) rather than the architectural foundations that determine operational capability (Bell & Orzen, 2010). Second, DevOps accelerates software deployment but doesn't address how business logic and data architecture affect operations (Kim et al., 2016). Third, technical debt frameworks capture code quality issues but miss the architectural misalignment that creates operational friction (Kruchten et al., 2012). These approaches treat symptoms while the underlying architectural disorder remains unaddressed.

This gap is critical because digital architecture increasingly determines organizational capability. When business rules scatter across systems, when data models fragment without reconciliation, when processes depend on individual knowledge rather than systematic design, organizations experience what we term structural waste: inefficiency arising from architectural misalignment rather than poor execution or implementation.

This paper addresses three interrelated questions:

1. How can Toyota Production System principles be systematically translated to the architecture of organizational information systems?
2. What forms of waste exist in digital operations that are distinct from both physical waste and technical debt?
3. What measurement instruments can assess structural inefficiency in digital systems?

We make three contributions. First, we identify and conceptualize structural waste as a distinct form of operational inefficiency, providing theoretical explanation for why technically excellent systems still create operational chaos. Second, we develop a five-layer modal architecture that translates TPS principles to digital operations while respecting the unique characteristics of information systems. Third, we propose measurement instruments that make architectural misalignment observable and assessable, enabling systematic improvement.

2. Theoretical Background

2.1 Toyota Production System Principles

The Toyota Production System rests on two foundational pillars: continuous improvement (kaizen) and respect for people (Liker, 2004). These manifest through interconnected principles that collectively eliminate waste and create flow:

Standardized Work establishes the current best method as a baseline for improvement (Spear & Bowen, 1999). In manufacturing, this means documenting optimal sequences, timing, and work-in-process inventory for each operation. Standardization makes abnormalities visible and provides a stable foundation for kaizen.

Visual Management makes system state immediately observable without investigation (Galsworth, 1997). Physical implementations include andon boards signaling production status, kanban cards controlling inventory, and 5S organization making problems apparent. Visual management reduces cognitive load and enables rapid response to deviations.

Flow Establishment organizes work to move continuously without interruption (Rother & Shook, 1999). This requires identifying bottlenecks, reducing batch sizes, and synchronizing operations. Flow makes problems immediately visible: when flow stops, the issue cannot be hidden in inventory or buffers.

Pull Systems trigger work based on downstream demand rather than upstream capacity (Hopp & Spearman, 2004). Pull prevents overproduction, the most fundamental waste, and creates natural throttling mechanisms that prevent system overload.

Jidoka (autonomation with human touch) embeds quality at the source through error-proofing and automatic defect detection (Shingo, 1986). This prevents defects from propagating downstream and eliminates the waste of inspection.

2.2 Information Systems Theory and Digital Operations

Information systems theory provides essential foundations for understanding digital operations. The information processing view of organizations (Galbraith, 1974; Tushman & Nadler, 1978) suggests that organizational design must match information processing requirements. When uncertainty increases, organizations need greater information processing capacity, achieved through either reducing needs (standardization) or increasing capacity (information systems).

Digital operations exhibit characteristics that fundamentally differ from physical manufacturing:

Invisibility: Information flows lack physical presence. While inventory piles create visual pressure, data queues remain hidden in databases (Davenport & Short, 1990). This invisibility allows waste to accumulate unnoticed.

Infinite Replication: Digital assets copy without material cost, but this creates versioning chaos and synchronization overhead as copies evolve independently (Kallinikos et al., 2013).

Embedded Logic: Business rules exist within code, configurations, and human knowledge rather than physical constraints. This distribution makes standardization challenging (Yoo et al., 2010).

Network Effects: Digital systems form complex interdependencies where changes cascade unpredictably, unlike linear manufacturing flows (Barabási, 2016).

2.3 Existing Approaches to Digital Waste

Previous research has identified various forms of digital inefficiency, though not through a Lean lens. Markus (2004) identified "technochange" challenges when technology implementation ignores organizational design. Strong and Volkoff (2010) documented enterprise system misalignments creating operational friction. Seddon et al. (2010) found that system benefits depend on organizational complementarities rather than technical features.

The technical debt metaphor (Cunningham, 1992) captures expedient implementation decisions that require future rework. While valuable for software quality, technical debt doesn't address architectural misalignment between business operations and system design. A system can have low technical debt (well-written code) yet high operational friction due to architectural misalignment.

DevOps and Lean IT approaches (Kim et al., 2016; Bell & Orzen, 2010) apply Lean to software delivery and IT services but don't address the fundamental architecture of business operations. They optimize the delivery pipeline without questioning what is being delivered or how it aligns with operational needs.

3. Theory Development

3.1 Structural Waste: A New Construct

We propose that digital operations exhibit a distinct form of waste not captured by existing frameworks:

Definition 1 (Structural Waste): Operational inefficiency arising from architectural misalignment between system components, characterized by coordination overhead, semantic inconsistency, and systemic dependency concentration, distinct from execution inefficiency (process waste) or implementation quality (technical debt).

Figure 1: Comparison of Waste Types

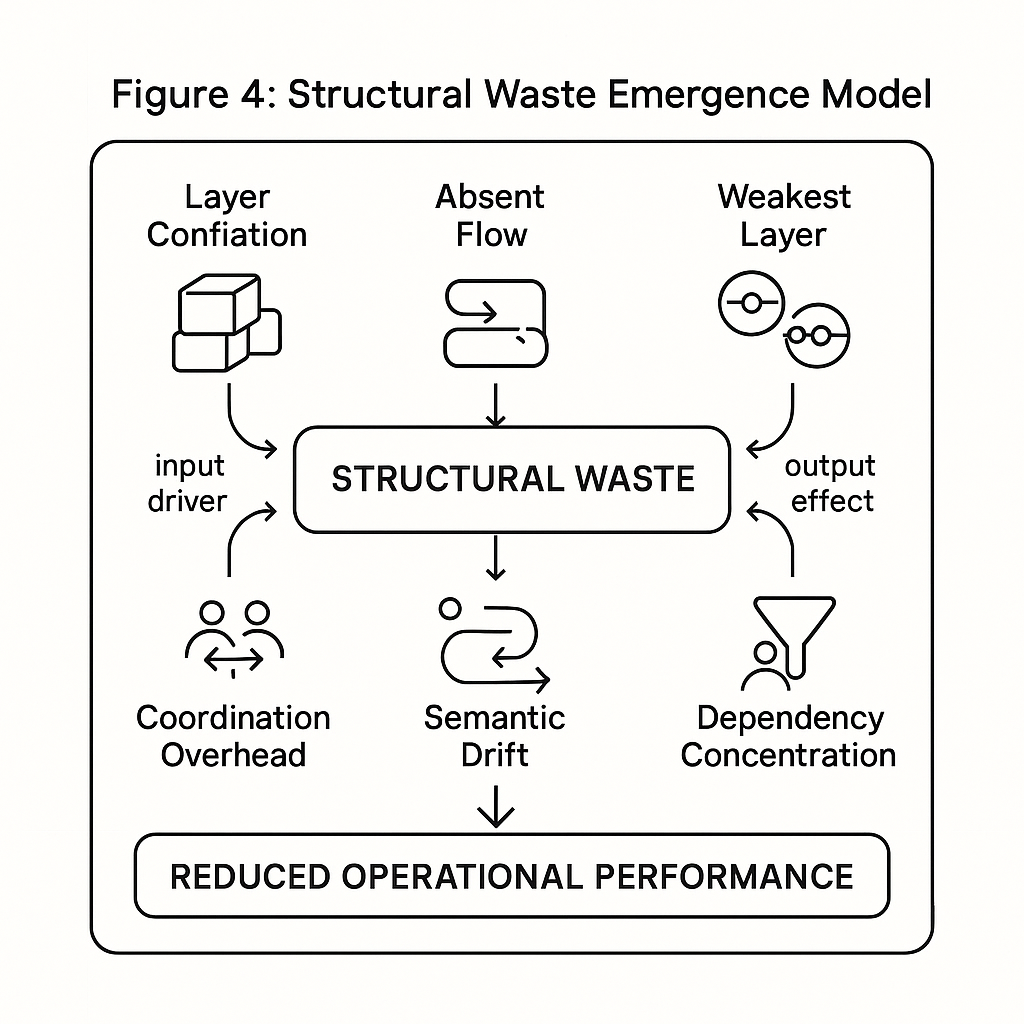

Structural waste emerges from how systems are architecturally organized rather than how they are executed or implemented. It manifests in three forms:

Coordination Overhead: Effort required to maintain consistency across architecturally separated components. When related functions exist in different systems without proper integration, humans become the integration layer.

Semantic Drift: Divergence in the meaning of core concepts across system boundaries. When "customer" means different things in different systems, every cross-system operation requires translation.

Dependency Concentration: Operational reliance on specific individuals rather than systematic capability. When operations depend on people who "know how things work," the organization has embedded its processes in human memory.

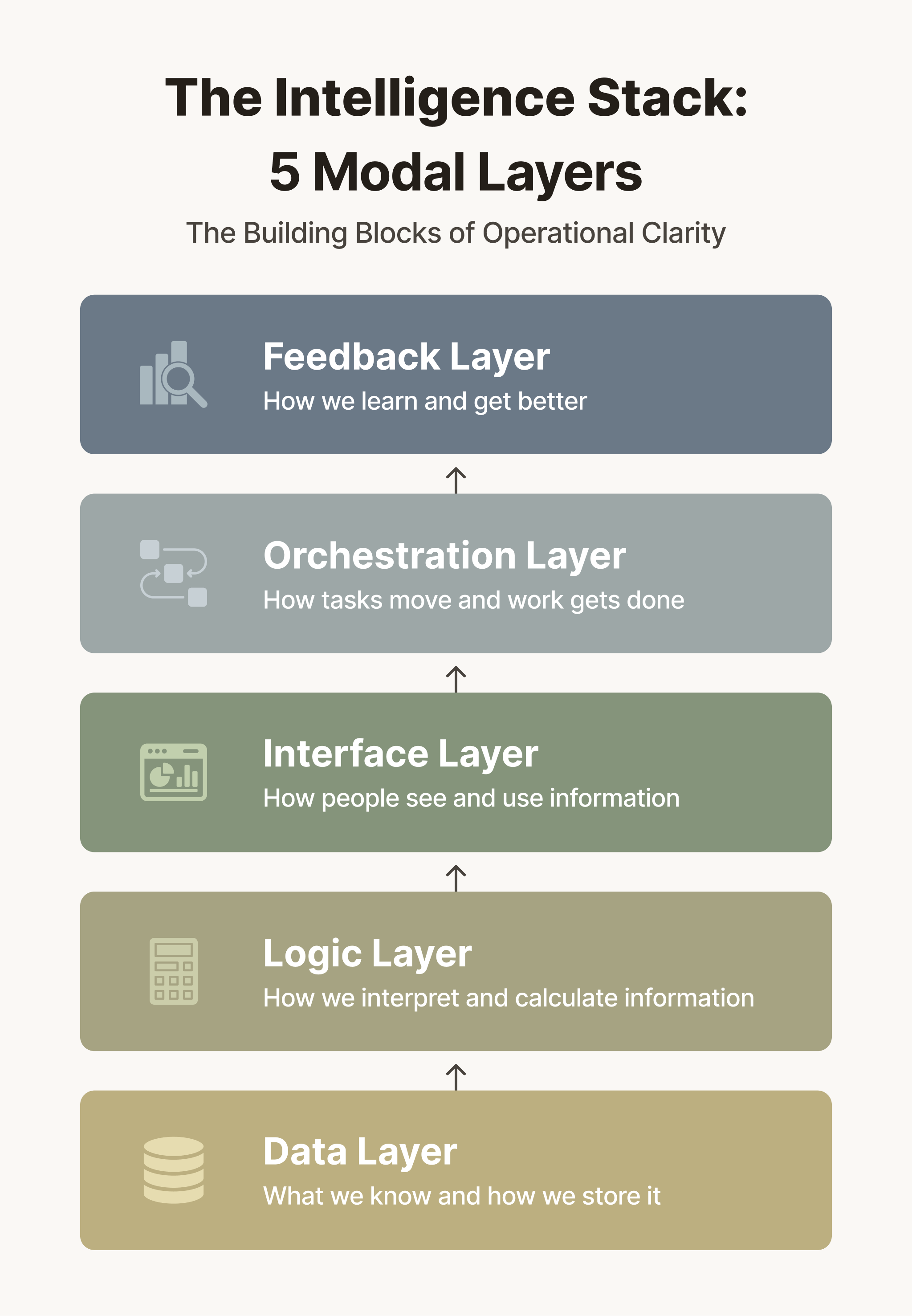

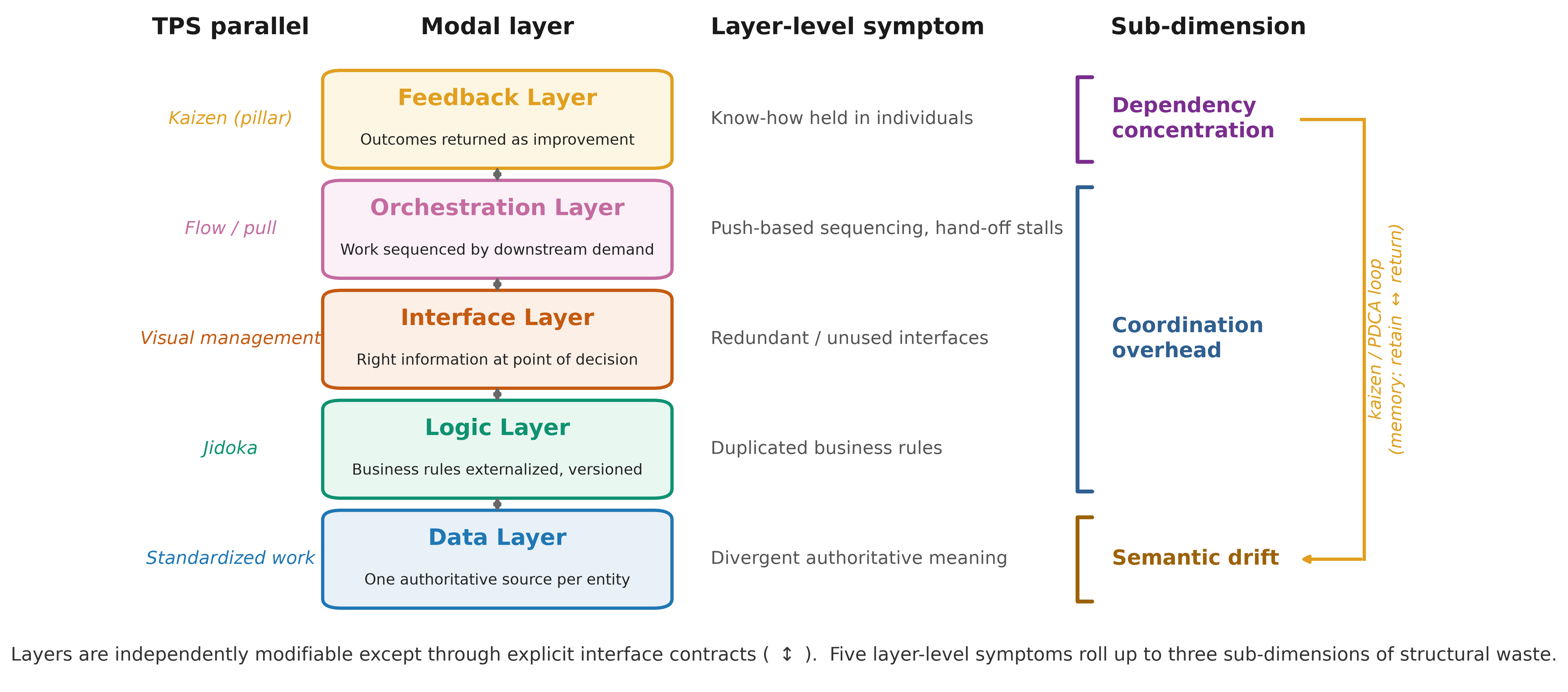

3.2 The Five-Layer Modal Architecture

Following separation of concerns principles (Parnas, 1972) and Lean's emphasis on visual clarity, we decompose digital operations into five modal layers:

Definition 2 (Modal Layer): An architectural domain with defined boundaries, transformation rules, and interfaces, independently modifiable except through explicit contracts.

3.2.1 Data Layer (Standardized Work)

Establishes the factual foundation. This layer parallels standardized work by creating consistent baselines for information. Just as standardized work documents the current best method, the Data Layer documents operational reality.

3.2.2 Logic Layer (Visual Management)

Externalizes business rules from implementation code. This parallels visual management by making decision criteria observable. Just as visual controls make production status apparent, the Logic Layer makes business rules explicit.

3.2.3 Interface Layer (Point-of-Use)

Manages human and system interaction points. This parallels Lean's principle of placing tools at the point of use. Interfaces should present exactly what is needed for decisions.

3.2.4 Orchestration Layer (Flow/Pull)

Controls process sequencing and triggering. This parallels flow establishment and pull systems by managing how work moves through digital operations.

3.2.5 Feedback Layer (Continuous Improvement)

Enables learning through systematic measurement and response. This parallels kaizen and PDCA cycles by connecting outcomes to improvements.

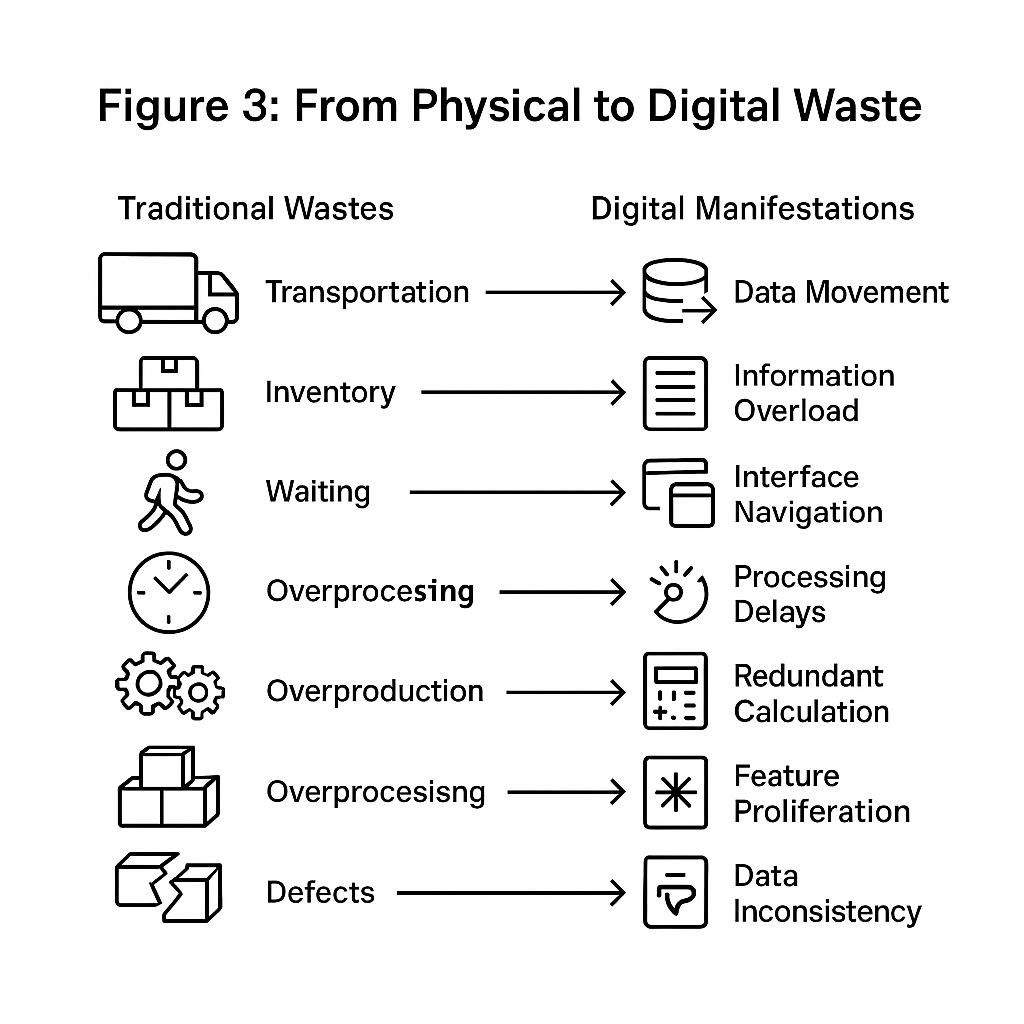

3.3 Translation of Seven Wastes

We systematically translate the seven wastes (muda) to digital equivalents:

3.4 Boundary Conditions

This framework applies specifically to organizational information systems that support business operations. It is most relevant when:

• Digital operations support core business processes
• Multiple systems must coordinate to deliver value
• Business logic can be distinguished from implementation
• Architectural modification is economically feasible

The framework does not apply to:

• Consumer applications with different architectural patterns
• Embedded systems with hardware constraints
• Pure computational systems without business logic
• Legacy systems where modification costs exceed benefits

4. Measurement Framework

4.1 Structural Waste Components

We propose four measurable components of structural waste:

4.1.1 Coordination Cost (CC)

• Definition: Person-hours required to maintain cross-system consistency
• Formula: CC = Σ(weekly hours on reconciliation) / (units of work)
• Interpretation: Higher values indicate greater structural misalignment

4.1.2 Logic Duplication (LD)

• Definition: Degree of business rule fragmentation across systems
• Formula: LD = Σ(locations per rule) / (number of rules)
• Normalized: LD_norm = (LD - 1)/(n - 1) ∈ [0,1]

4.1.3 Semantic Drift (SD)

• Definition: Divergence in entity definitions across systems
• Formula: SD = (fields with divergent definitions) / (total shared fields)

4.1.4 Dependency Concentration (DC)

• Definition: Operational reliance on specific individuals
• Formula: HHI = Σ(si²) where si = share of process steps dependent on person i

4.2 Layer Separation Index (LSI)

The Layer Separation Index measures architectural separation:

LSI = Σ(wₗ × sₗ) where:

• l ∈ {Data, Logic, Interface, Orchestration, Feedback}
• wₗ = layer weight (equal weighting or empirically derived)
• sₗ = separation score [0,1] based on five indicators per layer

4.3 Structural Waste Assessment Tool (SWAT)

We propose a 25-item instrument measuring structural waste across five dimensions. Sample items include:

• "Different systems show different values for the same metric"
• "We manually move data between systems daily"
• "Business rules exist in multiple places"
• "Only specific people know how to complete certain processes"

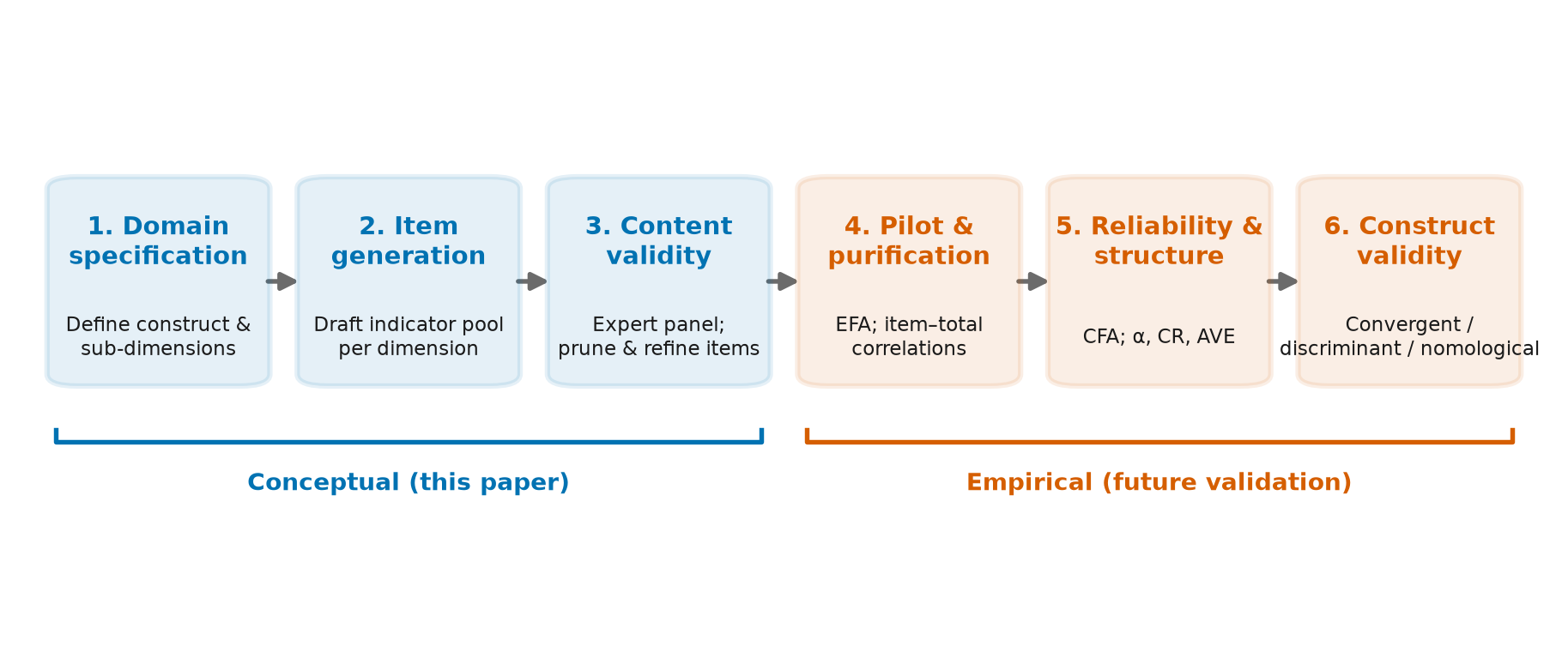

These instruments require empirical validation through psychometric assessment, which we identify as a priority for future research.

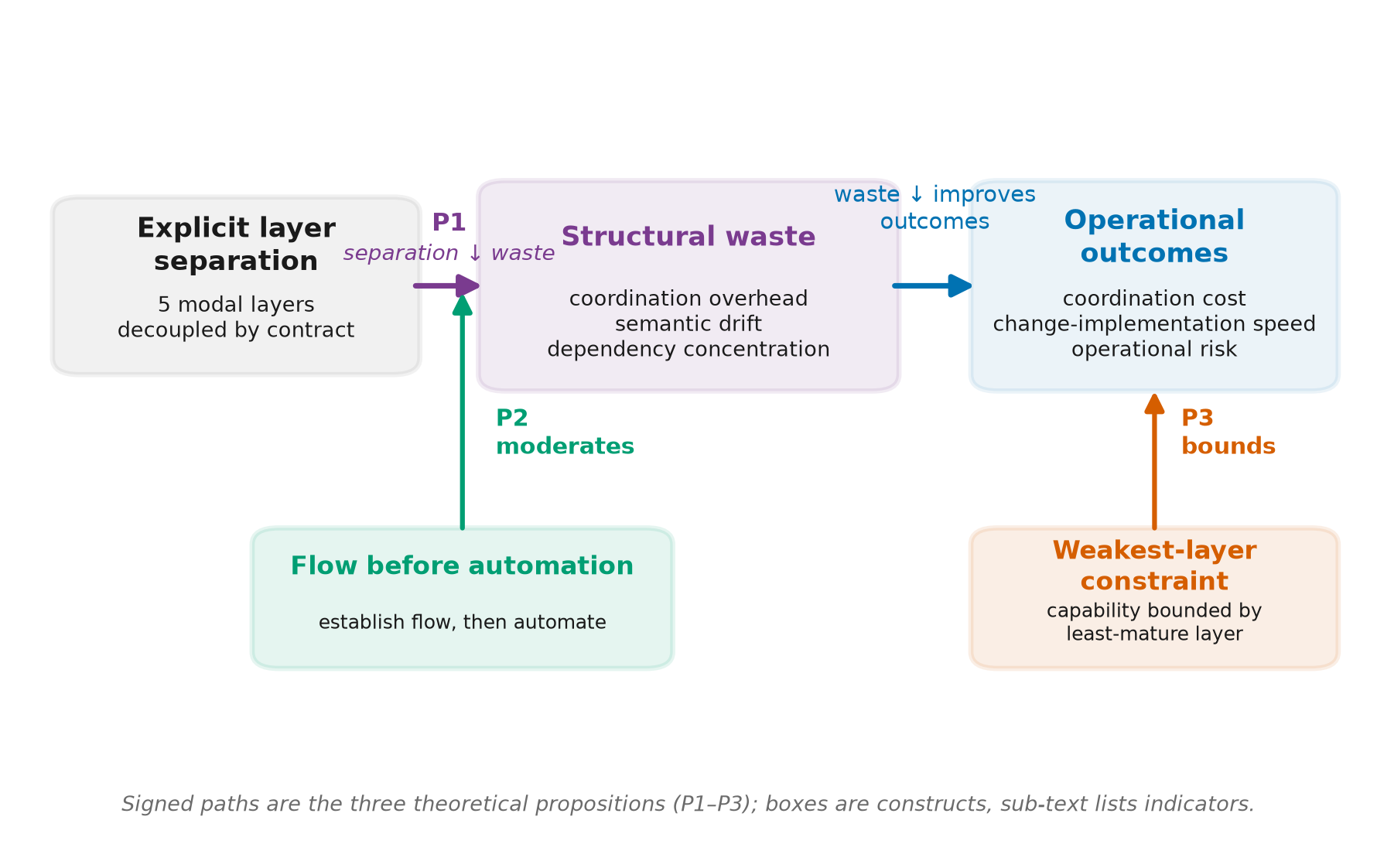

5. Theoretical Propositions

Our framework generates three testable propositions:

Proposition 1: Layer Separation Principle

Organizations maintaining explicit architectural separation between modal layers will exhibit lower structural waste than those with conflated architectures.

Theoretical mechanism: Separation creates bounded contexts that localize change impact. When layers are properly separated, modifications to business logic don't require interface changes; data model updates don't cascade through orchestration.

Proposition 2: Flow Before Automation

Digital operations that establish information flow prior to automation will achieve greater waste reduction than those that automate without establishing flow.

Theoretical mechanism: Automation amplifies existing patterns. Establishing flow first identifies and eliminates waste before automation locks it in place. This parallels Lean manufacturing's principle of achieving stability before implementing advanced technology.

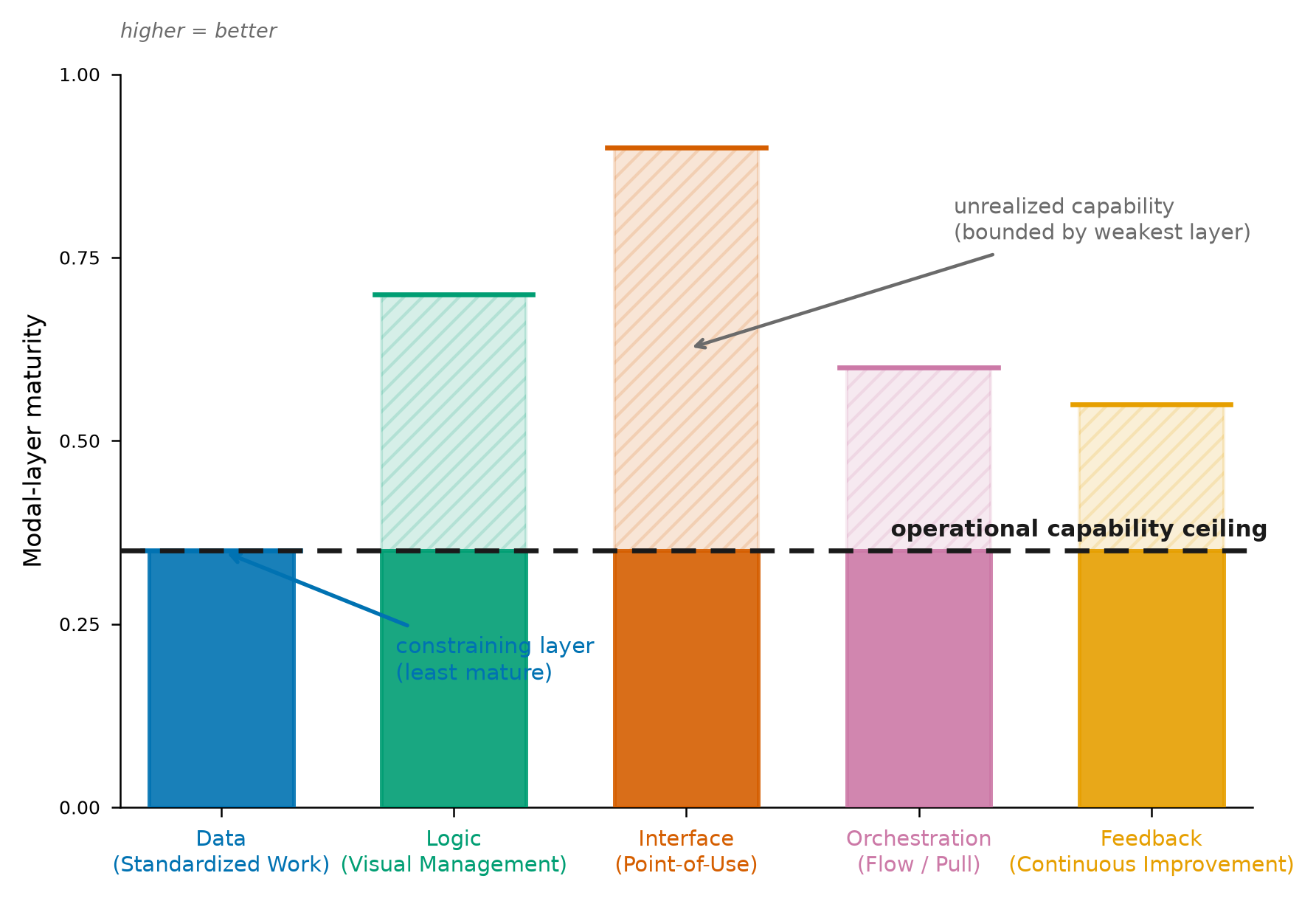

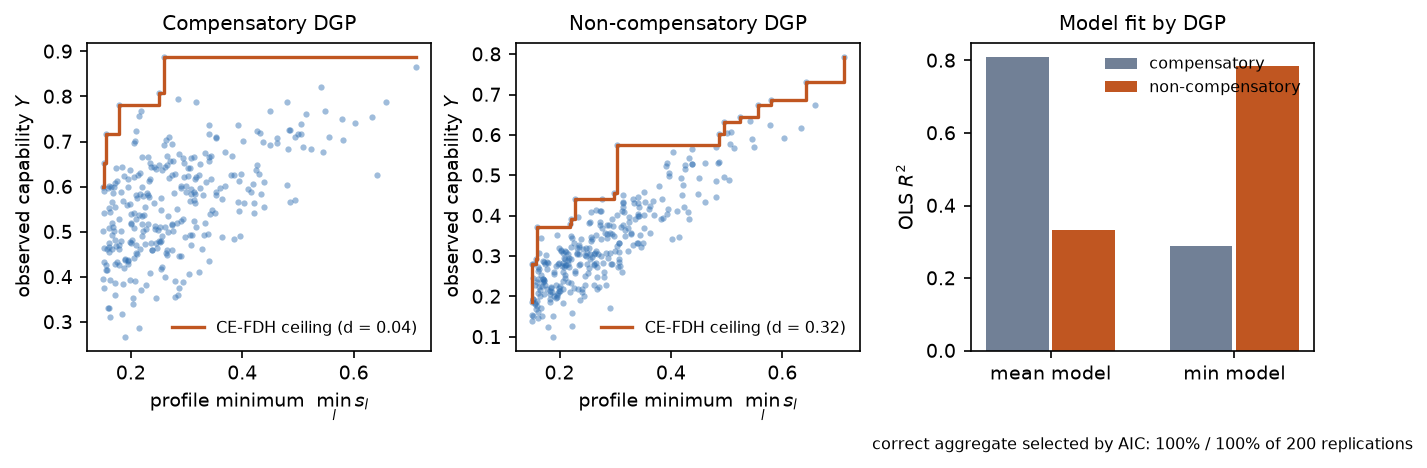

Proposition 3: Weakest Layer Constraint

Operational capability is bounded by the least mature modal layer, regardless of sophistication in other layers.

Theoretical mechanism: Information quality degrades when passing through immature layers. A sophisticated Interface Layer cannot compensate for a fragmented Data Layer. This creates a systemic constraint per Theory of Constraints (Goldratt, 1984).

6. Implications for Practice

6.1 Diagnostic Framework

Organizations can identify structural waste through systematic assessment:

Phase 1: Current State Analysis

• Map existing systems and their interactions
• Identify where business logic actually resides
• Document data flows and transformations
• Assess dependency on specific individuals

Phase 2: Waste Identification

• Apply SWAT instrument to quantify waste levels
• Calculate Layer Separation Index
• Identify the weakest layer constraining performance
• Map coordination overhead patterns

Phase 3: Improvement Prioritization

• Focus on the constraining layer first
• Establish flow before adding automation
• Separate layers incrementally
• Build feedback mechanisms for continuous improvement

6.2 Implementation Roadmap

Organizations should approach structural waste reduction systematically:

Stage 1: Foundation (Months 1-6)

• Establish single sources of truth for critical data
• Document existing business rules
• Create visibility into current processes

Stage 2: Separation (Months 7-12)

• Externalize business logic from applications
• Standardize data models across systems
• Implement workflow orchestration

Stage 3: Optimization (Months 13-18)

• Automate established flows
• Implement pull-based processing
• Create feedback loops for continuous improvement

6.3 Cost-Benefit Considerations

Implementing layer separation requires investment in:

• Architectural refactoring
• Process documentation
• System integration
• Change management

Benefits include:

• Reduced coordination costs (typically 30-50% reduction)
• Faster change implementation (typically 40-60% improvement)
• Lower operational risk through reduced dependencies
• Improved scalability through architectural flexibility

7. Discussion

7.1 Theoretical Contributions

This framework makes three theoretical contributions:

First, we identify structural waste as a distinct category of operational inefficiency. While prior work addresses process waste (Lean) and technical debt (software engineering), structural waste explains why technically excellent systems with efficient processes still experience operational chaos.

Second, we provide systematic translation of Toyota Production System principles to digital operations. Rather than superficial application of Lean terminology, we maintain theoretical fidelity while respecting digital operations' unique characteristics.

Third, we propose measurement instruments that make architectural misalignment observable, enabling systematic investigation and improvement.

7.2 Relationship to Existing Theory

Our framework complements existing theories:

Information Processing Theory (Galbraith, 1974): Structural waste represents unnecessary information processing requirements created by architectural misalignment. Layer separation reduces these requirements by localizing information processing within appropriate boundaries.

Modular Systems Theory (Baldwin & Clark, 2000): The modal layers represent a specific modularization optimized for operational clarity rather than technical flexibility.

Socio-Technical Systems (Trist & Bamforth, 1951): Structural waste emerges from misalignment between technical architecture and social work systems. The framework explicitly addresses this through layers that map to human and technical concerns.

7.3 Organizational Factors

Successful implementation depends on organizational context:

Culture: Organizations with continuous improvement cultures will more readily adopt layer separation principles. Those with siloed structures may resist the transparency required.

Leadership: Executive support is critical for architectural changes that span organizational boundaries. Leaders must understand that structural waste represents a strategic impediment.

Strategy: Digital strategy should explicitly consider architectural coherence. Strategic choices about integration versus best-of-breed solutions directly impact structural waste levels.

7.4 Limitations and Risks

This framework has limitations:

Measurement Challenges: Quantifying coordination overhead and semantic drift requires careful data collection. Organizations may lack the measurement infrastructure needed.

Implementation Costs: Layer separation requires significant architectural work. For some organizations, the investment may not be justified by potential benefits.

Change Resistance: Separating layers often reveals hidden dependencies and informal workarounds that stakeholders may resist exposing.

Over-Engineering Risk: Excessive layer separation could create unnecessary complexity. The framework requires judicious application rather than dogmatic implementation.

7.5 Future Research Directions

This framework opens several research avenues:

Empirical Validation: Testing the three propositions through field experiments and longitudinal studies. The measurement instruments require psychometric validation.

Contingency Factors: Investigating how industry, regulation, organizational size, and culture moderate the relationship between layer separation and performance.

Dynamic Capabilities: Understanding how architectural flexibility enabled by layer separation contributes to strategic agility.

Technology Evolution: Examining how emerging technologies (AI/ML, low-code platforms) affect structural waste patterns.

8. Conclusion

This paper develops a theory of structural waste in digital operations, extending Lean production principles to the architecture of organizational information systems. We answer our three research questions:

Question 1: How can TPS principles be translated to digital architecture? Through the five-layer modal architecture, each layer parallels a core Lean principle: Data Layer (standardized work), Logic Layer (visual management), Interface Layer (point-of-use), Orchestration Layer (flow/pull), and Feedback Layer (continuous improvement). This translation maintains theoretical fidelity while addressing digital operations' unique characteristics.

Question 2: What forms of digital waste are distinct from physical waste and technical debt? Structural waste represents architectural misalignment creating coordination overhead, semantic drift, and dependency concentration. Unlike technical debt (code quality) or process waste (execution efficiency), structural waste emerges from how systems are architecturally organized rather than how they are built or operated.

Question 3: What instruments can assess structural inefficiency? The Layer Separation Index (LSI) and Structural Waste Assessment Tool (SWAT) provide initial frameworks for measuring architectural misalignment. While requiring empirical validation, these instruments make previously invisible inefficiencies observable and actionable.

So what does this mean? Organizations investing millions in digital transformation often accelerate dysfunction rather than eliminate waste because they automate chaos rather than establishing architectural order. Just as the Toyota Production System required fundamental rethinking of manufacturing, achieving digital operational excellence requires fundamental rethinking of information architecture. The ability to identify and eliminate structural waste will become a critical capability as physical and digital operations continue to converge.

The framework suggests that true digital transformation is not about adopting new technologies but about establishing architectural coherence that enables operational clarity. Without addressing structural waste, organizations will continue to experience the paradox of sophisticated systems creating operational chaos.
